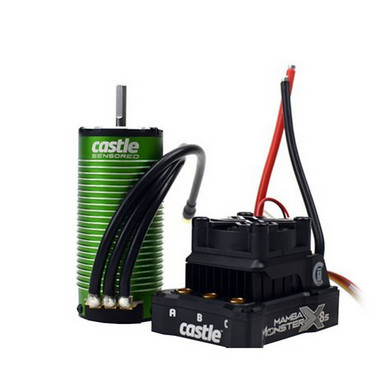

Castle Creations 010-0165-05 Mamba Monster X 8S ESC with 1520-1650Kv Sensored Motor
$949.00
(No reviews yet)
Write a Review
Castle Creations 010-0165-05 Mamba Monster X 8S ESC with 1520-1650Kv Sensored Motor
ESC Specs
- Input Voltage Range:
- MIN: 2S LiPo , MAX: 8S LiPo 33.6V
- BEC Specifications:
- Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Operating Environment:
- Waterproof* design allows for use in nearly any environment.
- Brake:
- Proportional
- Reversible:
- Yes, but may be disabled for racing.
- On/Off Switch:
- Yes, waterproof
- Cooling Fan:
- Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
- Size:
- L x W x H 69.5mm x 54.1mm x 47mm
- Weight (with no battery connector):
- 5.75 oz. (163 grams)
- Connectors:
- 6.5mm female bullets for motor connection.
Motor Specs
- Input Voltage Range:
- 3S - 8S LiPo
- Kv:
- 1650
- Max. RPM:
- 60000
- Size:
- Length: 3.50"" (88.8mm) Diameter: 1.64"" (41.6mm)
- Weight (w/wires):
- 508g (17.92 oz); 459g without wires.
- Shaft Diameter:
- 5mm
- Mounting Hole Specifications:
- M3 and M4@25.4mm (1.0"") Diameter
- Cooling Fan:
- Not available
- Connectors:
- 6.5mm male connectors
