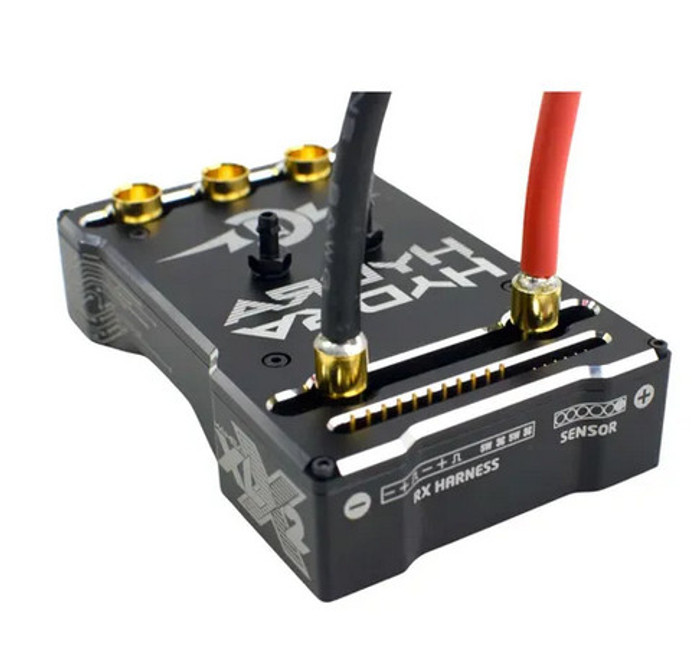

Castle Creations 010-0173-00 Hydra XLX2 8S Marine ESC
AUD $659.00
In stock
SKU
cse-010017300
Features
- Input Voltage Range 3S-8S LiPo (33.6v max)
- Sensorless, SmartSense and Brushed Running Modes
- Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Machined water-cooled heatsink with water fittings for 1/8" tubing.
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
- Mounting holes located in bottom of aluminum case for affixing to your vehicle
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link all available on Google Play or Apple App Store)
Specs
- Motor Type Brushless
- Product Weight 12.8 oz (363g)
- Product Width 2.49" (63 mm)
- Water-Resistant Yes
- Product Length 3.98" (101 mm)
- Product Height 1.34" (34 mm)
- Application RC Hobby boats up to 50"
- Connector Type 8mm Bullet
- Reverse Yes
- Brakes Available, but disabled by default
- Input Voltage 3S LiPo, MAX: 8S LiPo 33.6V
| Product Name | Castle Creations 010-0173-00 Hydra XLX2 8S Marine ESC |
|---|---|
| SKU | cse-010017300 |
| Weight (lbs) | 3.000000 |
| Description | Features
Specs
|
