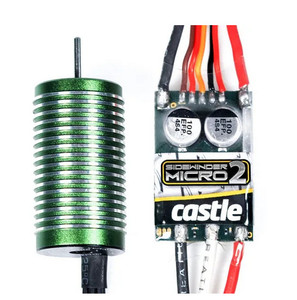

Castle Creations 010015002 Sidewinder Micro, 5300KV Motor Combo, 1/18

Castle Creations 010015002 Sidewinder Micro, 5300KV Motor Combo, 1/18

SKU:
CSE010015002
$229.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Technical Specs
Controller
Input Voltage Range: MIN: 2S LiPo
MAX: 3S LiPo (12.6V)
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Operating Environment: Not intended for use in wet conditions, ESC is not waterproof
Brake: Proportional
Reversible: Yes, but can be disabled for racing
On/Off Switch: Yes, waterproof
Cooling Fan: No
Size: Length: 1.6" (41mm)
Width: 0.75" (19mm)
Height: 1.1" (28mm)
Weight (without wires): 1.20 oz. (34g)
Connectors: 3.5mm bullets
Items Needed for Operation: Battery Connector required, 4mm Castle Connectors are recommended.
Product Use Statements:
  • Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
  • Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
  •  3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2lbs.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo
Recommended Motors: Combo includes Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH
Max. Recommended Vehicle Weight: 2 lbs, with batteries, ready-to-run
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: Yes
Tech Notes: N/A
Motor
Input Voltage Range: 2S - 3S LiPo, 4-9 cell NiMH
Kv: 5300
Max. RPM: N/A
Motor Size: Length: 1.5" (38.1mm)
Diameter: 0.79" (20mm)
Shaft Size: Diameter: 0.08" (2mm)
Length: 12mm
Weight (w/wires): 1.8 oz. (50g)
Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan: No
Connectors: 3.5mm male bullets
Items Needed for Operation: N/A
Product Use Statements: Max operating temperature: 180°F (82°C)
Application Guidelines: N/A
Max. Recommended Vehicle Weight: 2.25lbs
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
