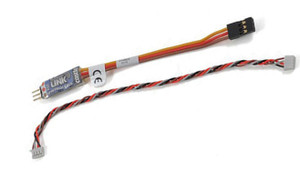

Castle Creations 010015200 Telemetry Link S-Bus, Futaba Compatible, CC-TEL-FUTABA

• Battery Voltage - You will be able to see the voltage state of your battery during flight and respond appropriately to deteriorating conditions or alarms you’ve programmed in your radio.
• Battery Current - Compatible controllers will transmit the instantaneous current draw of the system. You can use this information to reduce the load to prevent an overcurrent shutdown
• Motor Power Output - This is the percentage of full power your ESC is delivering to your motor
• RPM - Ensure you are within acceptable parameters, without the use of a tachometer
• BEC Voltage - Monitor your BEC voltage and its stability to the RX even under different loads from different servos
• ESC temperature monitoring can eliminate a potential thermal shut down
• Battery - Ripple Just how hard are the capacitors, FETS, and internal components working with your set up, excessive ripple can cause internal heating of batteries. Excessive heat is harmful to the components and it can ultimately kill the controller

SPECIFICATIONS:

  - Size:             Circuit board: 1.0" (25.4mm) x 0.44" (11mm)

  - Overall Dimentions: 5.25" (133mm) x 0.44" (11mm) including wires

  - Weight:        0.192 oz (5.44g) without wires

  - Tech Notes:   The Telemetry Link will not work if the ESC is programmed for Multirotor or External Governor Mode due to the higher PWM frequency.
