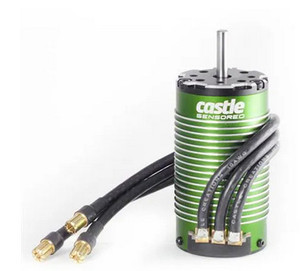

Castle Creations 060008600 1512-1800kV 4-Pole Sensored Brushless Motor

Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups
Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically
REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly
ROAR standard sensor port and labeled connections
Updated modern and sleek design; looks as cool as it performs

Input Voltage Range: 3s-4s LiPo
Kv: 1800
Max. RPM: 60000
Size: Length: 67.7mm Diameter: 40mm (41.4mm with fins)
Weight (w/wires): 385g (13.6oz) ; 336g without wires
Shaft Size: Length: 20mm Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors:: 4mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Items Needed for Operation:: Compatible Electronic Speed Control
Application Guidelines:: Ideal for 1:8 scale buggies weighing up to 9 lbs.
Recommended ESC(s): Mamba X
Max. Recommended Vehicle Weight: 9 lbs

More Information
Product Name	Castle Creations 060008600 1512-1800kV 4-Pole Sensored Brushless Motor
SKU	cse060008600
Weight (lbs)	1.000000
Description	Features Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly ROAR standard sensor port and labeled connections Updated modern and sleek design; looks as cool as it performs Specs Input Voltage Range: 3s-4s LiPo Kv: 1800 Max. RPM: 60000 Size: Length: 67.7mm Diameter: 40mm (41.4mm with fins) Weight (w/wires): 385g (13.6oz) ; 336g without wires Shaft Size: Length: 20mm Diameter: 5mm Mounting Hole Specifications: M3 and M4 @ 25mm Cooling Fan: Optional, coming soon! Connectors: 4mm male Castle Bullet Connectors, includes 210mm length sensor wire. Items Needed for Operation: Compatible Electronic Speed Control Application Guidelines: Ideal for 1:8 scale buggies weighing up to 9 lbs. Recommended ESC(s): Mamba X Max. Recommended Vehicle Weight: 9 lbs
