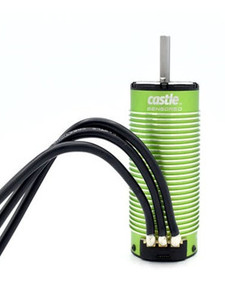

Castle Creations 060008700 2028 1100kV Sensored Brushless Motor

Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode
High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions
Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible
Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor
Dual sensor ports to ensure optimal installation in your large-scale vehicle
Updated modern and sleek design; looks as cool as it performs

Input Voltage Range: 10S MAX
Max. RPM: 45000
Size: Length: 4.4" (112.7mm) Diameter: 2.2" (56.3mm)
Weight (w/wires): 44 oz./1.25kg
Shaft Size: Length: 30mm Diameter: 8mm
Mounting Hole Specifications: 4mm @ 30mm
Cooling Fan: Available, but not included
Connectors: 8.0mm male connectors, 250mm sensor wire.
Items Needed for Operation:: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
Recommended ESC(s):: Mamba XL X, Mamba XLX2
Application Guidelines:: The 2028-1100KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Max. Recommended Vehicle Weight:: RC vehicles weighing less than 30lbs.
Product Use Statements:: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.

More Information
Product Name	Castle Creations 060008700 2028 1100kV Sensored Brushless Motor
SKU	cse060008700
Weight (lbs)	3.000000
Description	Features Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor Dual sensor ports to ensure optimal installation in your large-scale vehicle Updated modern and sleek design; looks as cool as it performs Specs Input Voltage Range: 10S MAX Max. RPM: 45000 Size: Length: 4.4" (112.7mm) Diameter: 2.2" (56.3mm) Weight (w/wires): 44 oz./1.25kg Shaft Size: Length: 30mm Diameter: 8mm Mounting Hole Specifications: 4mm @ 30mm Cooling Fan: Available, but not included Connectors: 8.0mm male connectors, 250mm sensor wire. Items Needed for Operation: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below) Recommended ESC(s): Mamba XL X, Mamba XLX2 Application Guidelines: The 2028-1100KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. Max. Recommended Vehicle Weight: RC vehicles weighing less than 30lbs. Product Use Statements: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC. Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
