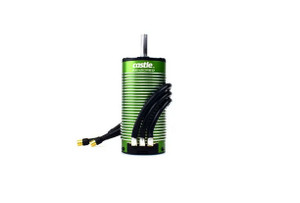

Castle Creations 060010300 2028-1700kV 4-Pole Sensored Brushless Motor

Ideal for extreme speed setups running up to 8s LiPo in 1/8 and 1/7 scale vehicles

Input Voltage Range: 8S MAX
Kv: 1700
Max. RPM: 60000
Size: Length: 4.4"" (112.7mm) Diameter: 2.2"" (56.3mm)
Weight (w/wires): 44.9 oz./1.25kg
Shaft Size: Length: 30mm Diameter: 0.315"" (8mm)
Mounting Hole Specifications: 4mm @ 30mm
Cooling Fan: Available, but not included.
Connectors:: 8.0mm male connectors, 250mm sensor wire.
Items Needed for Operation:: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
Product Use Statements:: This is an extremely powerful motor designed for advanced and experienced users only. Below are suggestions for increasing your likelihood of success but it is not guaranteed.
Start with very conservative gearing (small pinion/large spur).
Check your data logs, temperatures and setup closely after each run to ensure you are not stressing components.
This motor is intended for single passes only; allow time between runs for the ESC, batteries and motor to cool down to ambient temperatures.
This motor can pull very high amperages. Make sure your batteries, connectors and soldering are capable of handling the loads.
Inadequate power can cause poor performance and damage the batteries and/or ESC.
Do NOT free rev the motor with no load, particularly when running 6s or higher. The RPM output of the motor is much higher with no load as the kv and battery voltages do not drop.
Set ESC timing to Lowest (0). This motor will pull considerably more amperage as you increase timing. This does not necessarily equate to more speed as it puts more strain on the batteries and causes the voltage to sag. Less is more sometimes.
Do not exceed 33.6v when using this motor.
Be sure your pinion and motor bullets are secure before and after each run
Recommended ESC(s): Mamba XLX2
Running Modes:: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
Tech Notes:: Water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions.
