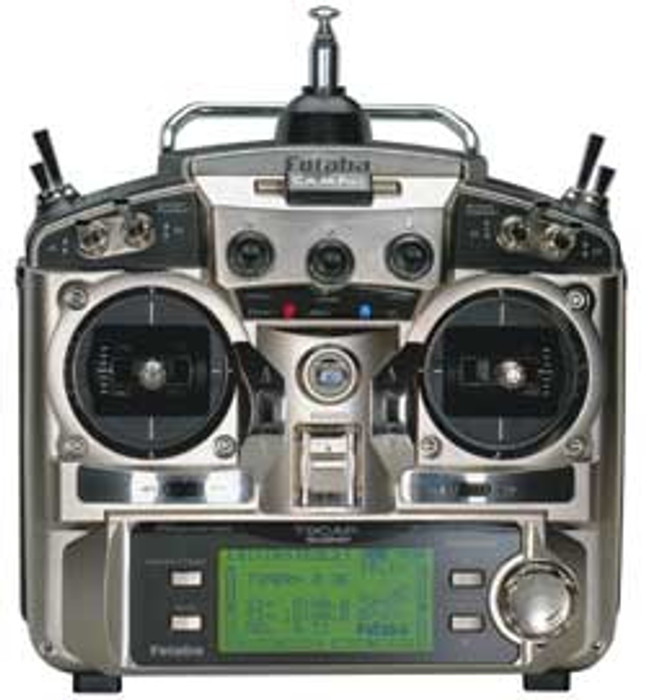

Futaba 9C Super 9CH 2.4GHz Radio System with LCD Screen

AUD $649.00
In stock
SKU
fu-9csuper

9C Super

9C Super

More of what you buy a 9C for!

More than any other radio, the 9C Super addresses the particular needs of glider pilots, with significant upgrades that make it the finest sailplane system you can buy. And with more memory, more functions AND more flexibility for controlling all types of R/C aircraft the 9C Super is the complete radio package for the advanced aeromodeler!

18 Model Memory

  • Memory has been expanded to 12 models, and the 16K CAMPac module that's included adds another six models — bringing the total up to 18.

A three-function timer, all on one screen

  • Can be utilized as an up timer or down timer to keep track of total flying time (hours/minutes) for a particular model — and can be programmed to any of the switches, the power switch or the throttle stick.

One transmitter for all three modes

  • The 9C Super offers you the functions and programs for airplanes, helis and gliders — all in one convenient controller.
360 view
Enhancements to all three modes!

Glider Mode

  • In addition to the Basic offset trim, the 9C Super offers three other offsets (launch, thermal and speed), with camber that can be customized for each.
  • The four camber mixes can be set up on one screen and programmed to any of the variable dials.
  • Besides setup ease, the glider mode boasts much more built-in flexibility.
  • A new G2F-C mix has been added to the G1FLP and G2FLP mixes.

Airplane Mode

  • The gyro system can be set up for 2-rate (up/down) or 3-rate (up/center/down) with the GYA gyros. It can also be programmed to any switch for normal or AVCS modes.
  • The Air Brake is now switch-selectable.
  • Both the Airplane and Glider Modes feature 7 programmable mixes: 5 linear mixes and two 5-point curves.

Heli Mode

  • 5-point Throttle Curve and Pitch Curve now feature a delay that makes for a smoother transition from hover to idle-up and better control.
  • The throttle hold and idle-up can be assigned to any switch that feels more comfortable for the pilot.
  • Hi/Low Pitch can be utilized to adjust the curves on the high side and low side for each flight condition.
  • Choose from six heli mixes: SWH1, SWH2, SR3, SN3, SWH4 and the new SWH3, along with two linear circuits and one 5-point curve.


Synthesized Transmitter Module 72MHz

Installs quickly, and allows modelers to fly on any 72MHz frequency from channel 11-60 by simply turning two dials.

R319DPS Synthesized Receiver PCM 72MHz

Two adjustable pots are all pilots need to select any free 72MHz channel — without having to select and install crystals.


Tech Notes
Stock Number Tx (Qty) Sx Rx Tx NiCd Rx NiCd Band (MHz) Modulation
FUTK9200 9CAPS –––– R319DPS 700mAh –––– 72 PCM
FUTK9205 9CHPS –––– R319DPS 700mAh –––– 72 PCM

Stock Number Tx (Qty) Sx Rx Tx NiCd Rx NiCd Band (MHz) Modulation
FUTK75** 9CAFS R148DF 700mAh 600mAh 50,72L&H FM
FUTK76** 9CHFS R148DF 700mAh 1000mAh 72L&H FM
FUTK77** 9CAPS R149DP 700mAh 600mAh 50,72L&H PCM
FUTK78** 9CHPS R149DP 700mAh 1000mAh 50,72L&H PCM
FUTK85** 9CAFS (4)S3151 R148DF 700mAh 600mAh 50,72L&H FM
FUTK86** 9CHFS (4)S3151 R148DF 700mAh 1000mAh 72L&H FM
FUTK87** 9CAPS (3)S9252 & (1)S3151 R149DP 700mAh 1500mAh 50,72L&H PCM
FUTK88** 9CHPS (4)S9252 R149DP 700mAh 1500mAh 50,72L&H PCM
FUTK89** 9CAPS (2)S3151 R138DP 700mAh 600mAh 75 PCM
More Information
Product Name Futaba 9C Super 9CH 2.4GHz Radio System with LCD Screen
Description

9C Super

9C Super

More of what you buy a 9C for!

More than any other radio, the 9C Super addresses the particular needs of glider pilots, with significant upgrades that make it the finest sailplane system you can buy. And with more memory, more functions AND more flexibility for controlling all types of R/C aircraft the 9C Super is the complete radio package for the advanced aeromodeler!

18 Model Memory

  • Memory has been expanded to 12 models, and the 16K CAMPac module that's included adds another six models — bringing the total up to 18.

A three-function timer, all on one screen

  • Can be utilized as an up timer or down timer to keep track of total flying time (hours/minutes) for a particular model — and can be programmed to any of the switches, the power switch or the throttle stick.

One transmitter for all three modes

  • The 9C Super offers you the functions and programs for airplanes, helis and gliders — all in one convenient controller.
360 view
Enhancements to all three modes!

Glider Mode

  • In addition to the Basic offset trim, the 9C Super offers three other offsets (launch, thermal and speed), with camber that can be customized for each.
  • The four camber mixes can be set up on one screen and programmed to any of the variable dials.
  • Besides setup ease, the glider mode boasts much more built-in flexibility.
  • A new G2F-C mix has been added to the G1FLP and G2FLP mixes.

Airplane Mode

  • The gyro system can be set up for 2-rate (up/down) or 3-rate (up/center/down) with the GYA gyros. It can also be programmed to any switch for normal or AVCS modes.
  • The Air Brake is now switch-selectable.
  • Both the Airplane and Glider Modes feature 7 programmable mixes: 5 linear mixes and two 5-point curves.

Heli Mode

  • 5-point Throttle Curve and Pitch Curve now feature a delay that makes for a smoother transition from hover to idle-up and better control.
  • The throttle hold and idle-up can be assigned to any switch that feels more comfortable for the pilot.
  • Hi/Low Pitch can be utilized to adjust the curves on the high side and low side for each flight condition.
  • Choose from six heli mixes: SWH1, SWH2, SR3, SN3, SWH4 and the new SWH3, along with two linear circuits and one 5-point curve.


Synthesized Transmitter Module 72MHz

Installs quickly, and allows modelers to fly on any 72MHz frequency from channel 11-60 by simply turning two dials.

R319DPS Synthesized Receiver PCM 72MHz

Two adjustable pots are all pilots need to select any free 72MHz channel — without having to select and install crystals.


Tech Notes
Stock Number Tx (Qty) Sx Rx Tx NiCd Rx NiCd Band (MHz) Modulation
FUTK9200 9CAPS –––– R319DPS 700mAh –––– 72 PCM
FUTK9205 9CHPS –––– R319DPS 700mAh –––– 72 PCM

Stock Number Tx (Qty) Sx Rx Tx NiCd Rx NiCd Band (MHz) Modulation
FUTK75** 9CAFS R148DF 700mAh 600mAh 50,72L&H FM
FUTK76** 9CHFS R148DF 700mAh 1000mAh 72L&H FM
FUTK77** 9CAPS R149DP 700mAh 600mAh 50,72L&H PCM
FUTK78** 9CHPS R149DP 700mAh 1000mAh 50,72L&H PCM
FUTK85** 9CAFS (4)S3151 R148DF 700mAh 600mAh 50,72L&H FM
FUTK86** 9CHFS (4)S3151 R148DF 700mAh 1000mAh 72L&H FM
FUTK87** 9CAPS (3)S9252 & (1)S3151 R149DP 700mAh 1500mAh 50,72L&H PCM
FUTK88** 9CHPS (4)S9252 R149DP 700mAh 1500mAh 50,72L&H PCM
FUTK89** 9CAPS (2)S3151 R138DP 700mAh 600mAh 75 PCM
SKU fu-9csuper
Weight (lbs) 4.000000
