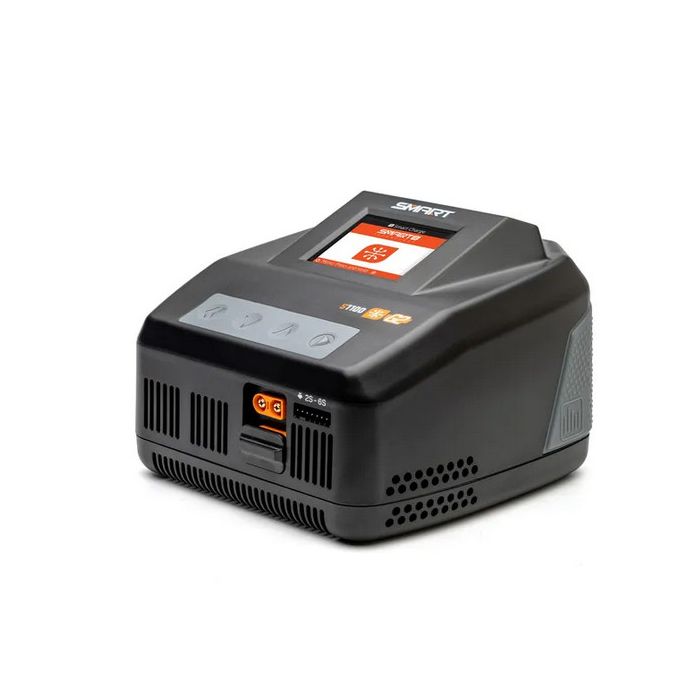

Spektrum SPMXC2080AU Smart S1100 G2 1x100w 240v Charger

Delivers 100W power for charging
Charges AND balances Smart batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
Smart software tracks and stores numerous Smart battery data
Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
An on-screen clock counts down the remaining charge time until your Smart battery is fully charged and ready to use
Updated user interface features fresh, intuitive menus, icons, and navigation tools, plus non-slip, easy-to-use buttons
USB input and output ports are included for updating firmware and charging secondary devices
ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
Detachable power cord makes transporting more convenient
Includes an efficient, low-noise cooling fan
Compact size and the sleek, sturdy case fits nicely on a workbench and in pit or field bags
Handy rubber grips on the case make it easier to plug in and remove batteries
IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors

Display 2.4" 320 x 240 IPS LCD
Number of Cells: 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb
Reverse Polarity Protection Yes
Thermal Protection Yes
Discharge 0.1 - 1.5A, adjustable in 0.1A increments (15W Max)
Peak Detection Yes
Safety Timer Yes
Output Connector IC3 and IC5 selectable
Programmable Yes
Battery Balance Connector JST-XH
Selectable Charge Rate Yes
Charge Protection Circuitry Yes
Maximum Charge Rate 10.0A (100W Max)
Product Length 5.7" (145 mm)
Voltage Meter Yes
Battery Type: LiFe (3.3V per cell),LiHV (3.8V per cell),LiIon (3.3V per cell),LiPo (3.7V per cell),NiCd (1.2V per cell),NiMH (1.2V per cell),Pb (2.0V per cell)
Input Voltage 100 - 240V AC, 50 - 60 Hz
Maximum Continuous Discharge Current 1.5A (15W Max)
Over Current Protection Yes
Software Updates Yes
Integrated Balancing Yes - Internal Balancer & Internal Adapter
Product Weight 1.75 lb (795g)
PC Connectivity Yes
Product Width 5.7" (145 mm)
Normal/Standard Charge Rate: 0.1 - 10.0A, adjustable in 0.1A increments (100W Max)
Short Circuit Protection Yes
Amp Meter Yes
Product Height 4.1" (104 mm)
Battery Temperature Monitoring Yes

More Information
Product Name	Spektrum SPMXC2080AU Smart S1100 G2 1x100w 240v Charger
SKU	spmxc2080au
Weight (lbs)	3.000000
Description	Features Delivers 100W power for charging Charges AND balances Smart batteries with one simple IC3® or IC5® connection — no separate balance lead needed Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected Charges virtually any RC battery (use Smart batteries to benefit from all charger features) Smart software tracks and stores numerous Smart battery data Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries An on-screen clock counts down the remaining charge time until your Smart battery is fully charged and ready to use Updated user interface features fresh, intuitive menus, icons, and navigation tools, plus non-slip, easy-to-use buttons USB input and output ports are included for updating firmware and charging secondary devices ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control Detachable power cord makes transporting more convenient Includes an efficient, low-noise cooling fan Compact size and the sleek, sturdy case fits nicely on a workbench and in pit or field bags Handy rubber grips on the case make it easier to plug in and remove batteries IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors Specs Display 2.4" 320 x 240 IPS LCD Number of Cells 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb Reverse Polarity Protection Yes Thermal Protection Yes Discharge 0.1 - 1.5A, adjustable in 0.1A increments (15W Max) Peak Detection Yes Safety Timer Yes Output Connector IC3 and IC5 selectable Programmable Yes Battery Balance Connector JST-XH Selectable Charge Rate Yes Charge Protection Circuitry Yes Maximum Charge Rate 10.0A (100W Max) Product Length 5.7" (145 mm) Voltage Meter Yes Battery Type LiFe (3.3V per cell),LiHV (3.8V per cell),LiIon (3.3V per cell),LiPo (3.7V per cell),NiCd (1.2V per cell),NiMH (1.2V per cell),Pb (2.0V per cell) Input Voltage 100 - 240V AC, 50 - 60 Hz Maximum Continuous Discharge Current 1.5A (15W Max) Over Current Protection Yes Software Updates Yes Integrated Balancing Yes - Internal Balancer & Internal Adapter Product Weight 1.75 lb (795g) PC Connectivity Yes Product Width 5.7" (145 mm) Normal/Standard Charge Rate 0.1 - 10.0A, adjustable in 0.1A increments (100W Max) Short Circuit Protection Yes Amp Meter Yes Product Height 4.1" (104 mm) Battery Temperature Monitoring Yes
