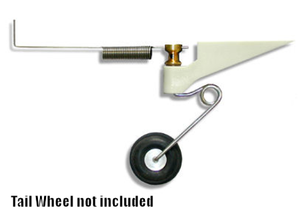

Sullivan 860 Tail wheel bracket (2kgs to 5kgs)

Steerable Tail Wheel
Bracket. Springs absorb both
ground bumps and steering
shocks to protect models and
rudder servos. Easy to install
with only two bolts! (Tail
wheel not included).

The bracket can be set up for steering or castoring. The kit includes mounting hardware and two different steering springs. For how to install follow this link. S859 shown.

Number	Model weight	Axle size	Max. tailwheel size
S859	2 to 6 lbs (1-3 Kg)	1/16" (1,6 mm)	1-1/4" (32 mm)
S860	5 to 12 lbs (2-5 Kg)	5/64" (2,0 mm)	1-1/4" (32 mm)
S861	10 to 22 lbs (4-10 Kg)	3/32" (2,4 mm)	1-5/8" (41 mm)
S862	16 to 35 lbs (7-16 Kg)	1/8" (3,2 mm)	2-1/8" (54 mm)
