OS 51011000 OMA-3820-1200 38mm BRUSHLESS MOTOR (1200 RPV)

High-Powered Brushless Aircraft Motors from O.S.!

OMA-3820-1200 38mm BRUSHLESS MOTOR (1200 RPV) EQUIV .25 SIZE 2 STROKE
OMA-3820-1200 (.25 Size)

Weight: 155g
Turns: 10
Resistance: 21.4 mOhms
Bearings: 3
Current Range: 30 - 40A
ESC Timing Degrees: 20 - 30 Degrees
KV RPM: 1200
Max Current: 75A for 10 secs
Pole: 14
Power Output: 440W/11.1v or 590w/14.8v
Nominal Voltage: 11.1 - 14.8v (3 - 4S Li-Po)
No Load Current: 1.9A
Max Efficiency: 85%
Shaft dia: 5mm
Shaft Length: 11.5mm

Pilots loyal to outstanding O.S. performance but eager to fly electric will soon have the ideal option — powering electric airplanes using new O.S. brushless motors!

Designed by O.S. engineers to be the new "gold standard" in electric power, these motors offer the same legendary quality and reliability that have made O.S. glow engines famous worldwide for 75 years. Initially, the motors are being produced in four sizes, equivalent to .25, .30, .40 and .50 size glow engines.

Only O.S. brushless motors will offer a ventilation system that increases efficiency and allows the motors to generate additional power. Key to this system is a unique centrifugal fan design. The fan draws air through specially angled ventilation holes, across the windings and over the magnets for greatly improved cooling.

Other performance features of O.S. brushless motors include:

• A thick can design that resists distortion;
• Three high-quality bearings;
• Rigid and secure rear mounting design;
• Shortened motor length for easy installation in short cowls;
• A stainless steel prop shaft;

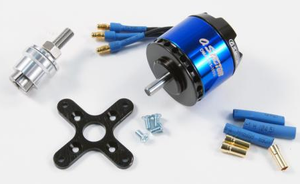

• Supplied back plate, prop shaft, and gold-plated female plugs.

With the introduction of these brushless motors, O.S. reaffirms its standing as R/C's most innovative and respected resource for all model power needs. O.S. plans to expand its motor lineup in the near future with more sizes and choices for car, helicopter and ducted fan modelers.

Additional information will be available soon...

Please Note: This new release preview is intended to give you the very latest news possible about O.S. products. Details are subject to change. Updates will be posted on as more information becomes available.
